Digatron KE-1U

The smart cell contact unit is the perfect addition for safe working in the test laboratory. When preparing experiments with precharged cells that are wired in the test room, there is an increased risk of short-circuits. This device prevents a short-circuit on the battery under test, avoiding damage and – more importantly – protecting your laboratory staff.

Flexible use

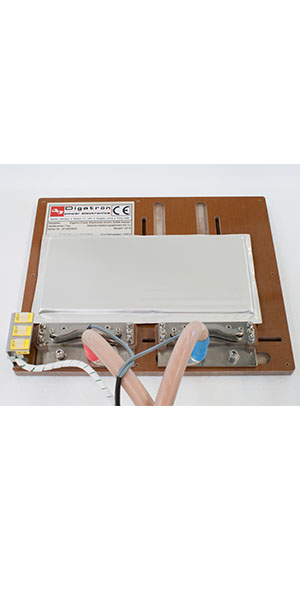

The contact unit shown here is suitable for pouch cells with side-by-side and opposite contact arrangement up to a length of 192 mm. The concept can be altered to other geometries.

Cell contact unit for preventing short circuits of the battery to be tested and for employee protection


  Digatron KE-1U
Current-carrying capacity 200 Ampere
Carrier material DIN EN 60893
Contact blocks Copper, nickel-plated
Temperature range -40° C up to +110°C
Storage space 385 x 320 mm
