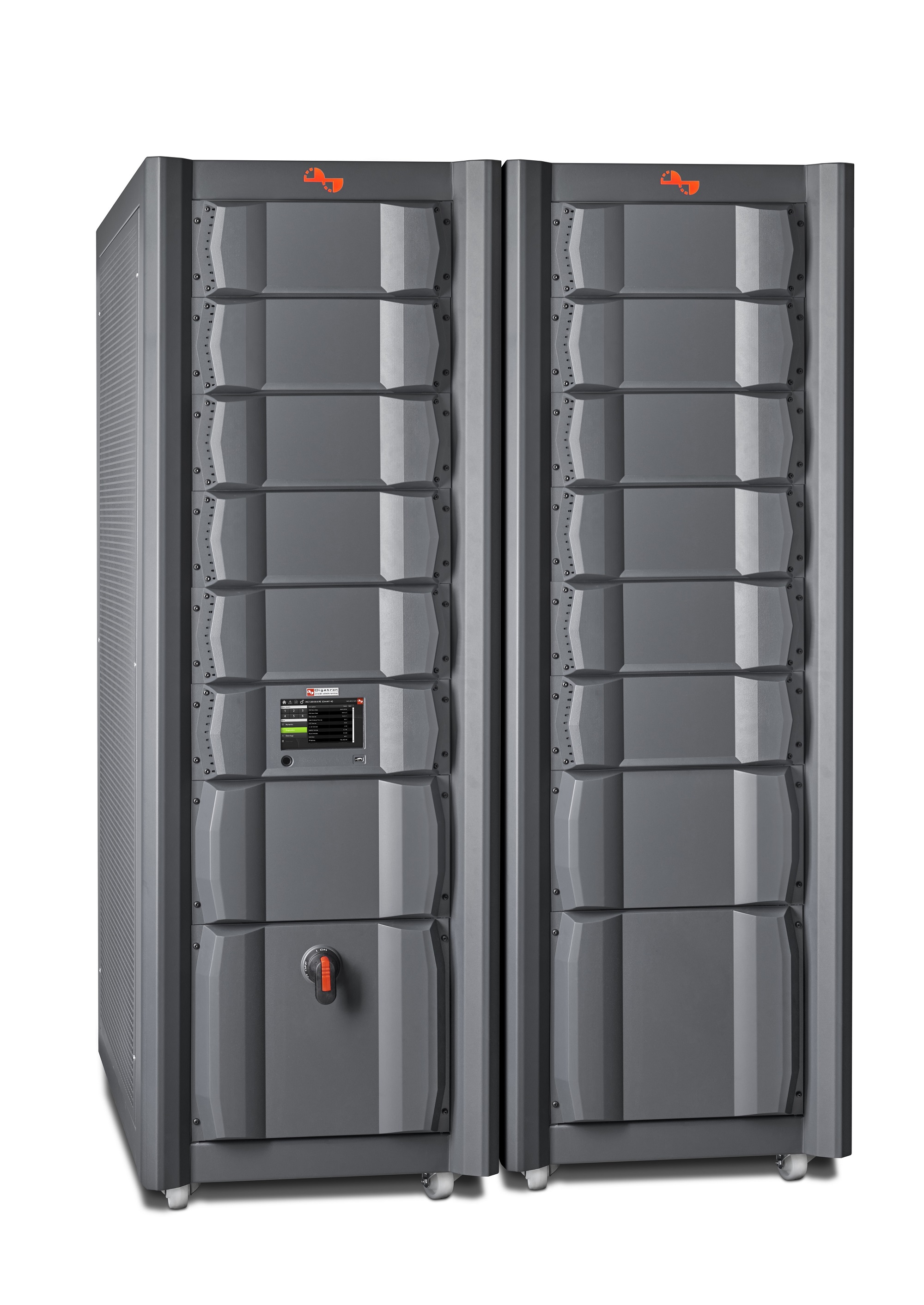

Digatron UBT-HD

Energy-efficient system with high packing density for starter batteries and battery modules

This cycler is the right choice for automated tests on SLI batteries in the current range between 10 amps and 40 amps. Thanks to its high packing density that is unique on the market, it offers up to 256 test circuits in just one cabinet. This makes it perfect for installations in laboratories where high quantities of batteries need to be tested.

Incredibly space-saving

Thanks to the high packing density that is unique on the market, the device takes up little valuable laboratory space while also ensuring high test capacities.



High energy efficiency

The device features switch mode amplifiers with up to 96% efficiency, regenerative DC links make a part of the energy used available again. All power elements are supplied by power units with Digatron’s exclusive B.E.S.T. technology.



Precise test results

The HD series offers four selectable current ranges. Thanks to cutting-edge hardware and software that are perfectly synchronized with each other, you can obtain measurement results in the microvolt [µV] and microampere [µA] ranges.



Parallel connection of circuits

Two or four power outputs can be easily connected in parallel to increase the current accordingly.



TECHNICAL DATA

  UBT-HD UBT-RE UBT-ME
Voltage range Charge: 0,1 up to 18 V
Discharge: 0,7 up to 18V
-20 V up to 20 V 0 V up to 18 V*
Current range (circuit) 10 A 150 A 25 up to 150 A*
Paralleling of circuits Yes Yes Yes
Control accuracy U DC < ± 0,05 % fs < ± 0,05 % fs < ± 0,1 % fs
Control accuracy I DC < ± 0,05 % fs < ± 0,1 % fs < ± 0,1 % fs
Regenerative DC link Yes Yes No
Mains feedback Yes Yes No
Circuits per Power Module 4 up to 64 1 up to 6 n/a
Max. circuits per cabinet 256 48 24*
Scaleable Yes Yes Yes
    to UBT-RE to UBT-ME
* other values on request

Suitable for the following tests



Capacity

Cyclic tests to determine aging

Charge acceptance and efficiency



Accessories

Only the right accessories can transform a single product into a perfectly synchronized installation. Our extensive portfolio of accessories offers everything you need for a complete solution.

Cool or heat any battery type to carry out specific temperature tests

Temperature Chamber

Cool or heat any battery type to carry out specific temperature tests

Digatron's software for controlling and managing tests and formations

Battery Manager

Digatron's software for controlling and managing tests and formations

Specially developed safety unit for testing batteries with critical voltage and temperature limit values

Safetybox

Specially developed safety unit for testing batteries with critical voltage and temperature limit values

Professional device for electrochemical impedance spectroscopy for batteries

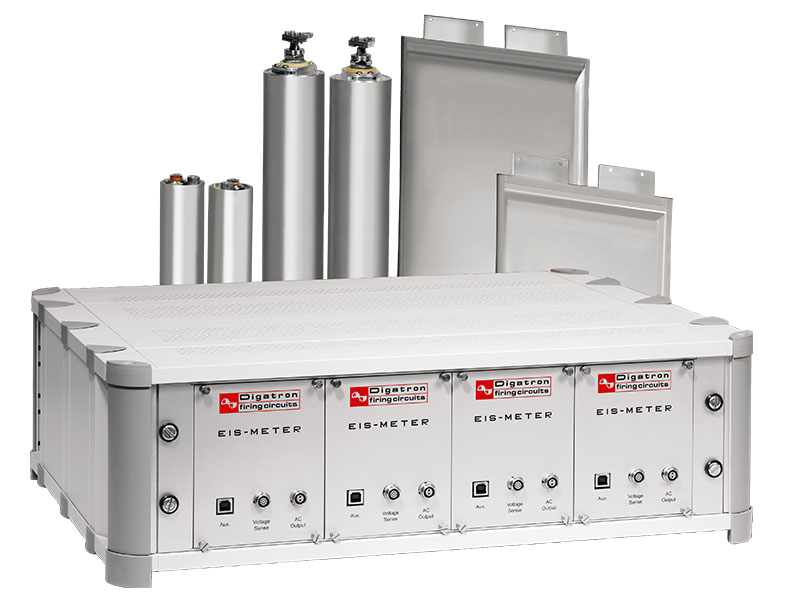

EIS-METER FROM SAFION
