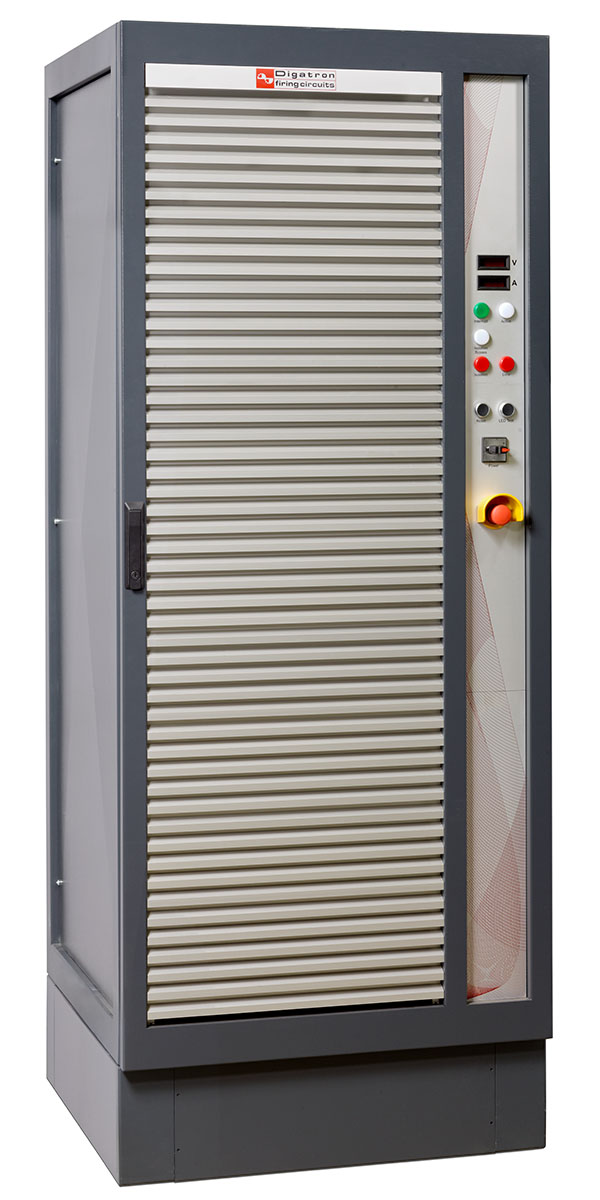

With the BNT-IGBT, you can test battery modules in the voltage range of up to 150 volts and 500 amps. Its unique modularity enables stand-alone operation or the aggregation of several devices into one – for simplified control. Thanks to regenerative technologies, the device is highly energy and cost efficient even at peak power. Specifically developed for tests on drive batteries, you can use this device to test components on the 48-volt on-board electrical system, batteries for small BEVs, traction batteries for industrial trucks and many more battery modules.
Allows dynamic high-current applications with several hundred amps to be implemented.
All power elements feature IGBT power amplifiers and bidirectional power units with full sine wave grid regeneration.
The modular construction, including all winding material, allows the system to be easily expanded by the addition of more modules for higher current and power.
Thanks to cutting-edge, perfectly synchronized hardware and software, our equipment achieves precise measurement results.
Several built-in power elements can be connected in parallel to increase the current accordingly. It is also possible to link several test stations.
Typical load profiles
Energy recovery during the braking process
Only the right accessories can transform a single product into a perfectly synchronized installation. Our extensive portfolio of accessories offers everything you need for a complete solution.
Digatron battery connector cable for monobloc container formation
Digatron's software for controlling and managing tests and formations
Specially developed safety unit for testing batteries with critical voltage and temperature limit values
Cable to connect your battery under test to the Digatron device
For DUT-temperature measurements in harsh environments with 4, 8 or 16 channels
Data logger to meassure additional voltages and temperatures
