Digatron UBT-RE

Energy-efficient test system for high-current tests on starter batteries and battery modules

The Digatron cycler UBT-RE enables you to effortlessly perform high-current tests on starter batteries in the current range from 150 amps. Equipped with regenerative DC links, the device offers ultimate energy and cost efficiency. A large part of the energy used is made available again thanks to this technology. The device also features the highest packing density on the market and saves an enormous amount of space. Coupled with familiar Digatron quality, these features make the device perfect for laboratories that perform automated test runs on battery modules in the high-current range and want to save money.

Precise test results

Thanks to cutting-edge hardware and software that are perfectly synchronized with each other, you can obtain precise measurement results.



Parallel connection of circuits

The power outputs can be easily connected in parallel to increase the current accordingly.



Maximum scalability

The device can be optimally scaled from a few circuits with just one plug-in unit to several dozens and effectively grows with your demands.



High energy efficiency

All power elements feature regenerative DC links and bidirectional power units with Digatron’s exclusive B.E.S.T. technology.


Digatron UBT-RE, Testssystem f?r Hochstromtests an Starterbatterien zwischen 10 und 40 Ampere, Einzelschrank
Digatron UBT-RE Leistungsmodul

TECHNICAL DATA

  UBT-RE UBT-HD UBT-ME
Voltage range -20 V up to 20 V Charge: -0,1 V up to 18 V,
Discharge: 0,7 V up to 18 V
0 V up to 18 V*
Current range (circuit) 150 A 10 A 25 up to 150 A*
Paralleling of circuits Yes Yes Yes
Control accuracy U DC < ± 0,05 % fs < ± 0,05 % fs < ± 0,1 % fs
Control accuracy I DC < ± 0,1 % fs < ± 0,05 % fs < ± 0,1 % fs
Regenerative DC link Yes Yes No
Mains feedback Yes Yes No
Circuits per Power Module 1 up to 6 4 up to 64 n/a
Max. circuits per cabinet 48 256 24*
Scaleable Yes Yes Yes
  Datasheet Learn more Learn more
* other values on request

Suitable for the following tests



Capacity

Cyclic tests to determine aging

Charge acceptance

Efficiency and internal resistance

High-current discharging

Start-stop simulation

Simulation of on-board electrical system loads and micro hybrid applications

Dynamic charge acceptance (DCA-Test)



Accessories

Only the right accessories can transform a single product into a perfectly synchronized installation. Our extensive portfolio of accessories offers everything you need for a complete solution.

Cool or heat any battery type to carry out specific temperature tests

Temperature Chamber

Cool or heat any battery type to carry out specific temperature tests

Digatron's software for controlling and managing tests and formations

Battery Manager

Digatron's software for controlling and managing tests and formations

Specially developed safety unit for testing batteries with critical voltage and temperature limit values

Safetybox

Specially developed safety unit for testing batteries with critical voltage and temperature limit values

Professional device for electrochemical impedance spectroscopy for batteries

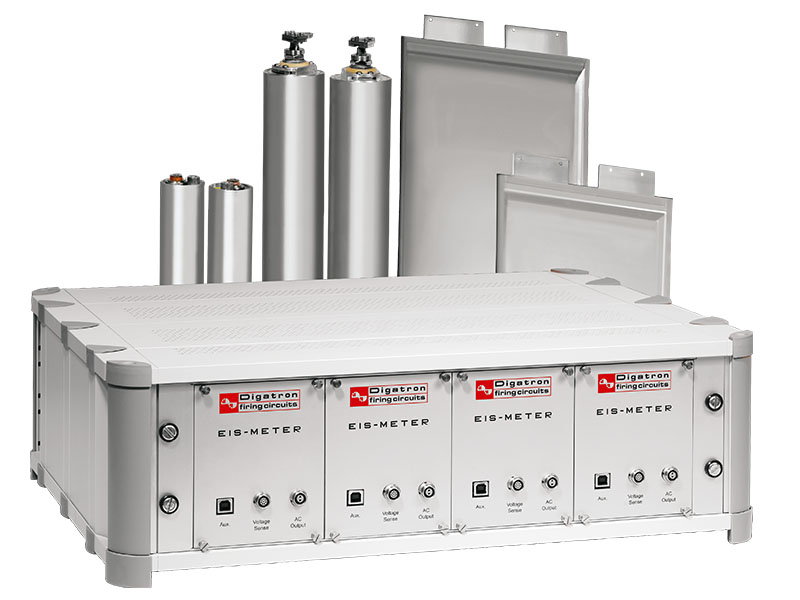

EIS-METER FROM SAFION

Professional device for electrochemical impedance spectroscopy for batteries

Data acquisition for single cell voltages and battery and tank voltages during the test cycle

DLS

Data logger to measure additional voltages and temperatures

Measurement module for use in harsh environments and measures the DUT temperature

DLT

For DUT-temperature measurements in harsh environments with 4, 8 or 16 channels

Cable to connect your battery under test to the Digatron device

Batterieanschlusskabel

Cable to connect your battery under test to the Digatron device

Vibrating table

Vibrating table

Vibrating table for simulating the mechanical stresses of a starter battery according to EN 50342

The perfect temperature compensation for batteries

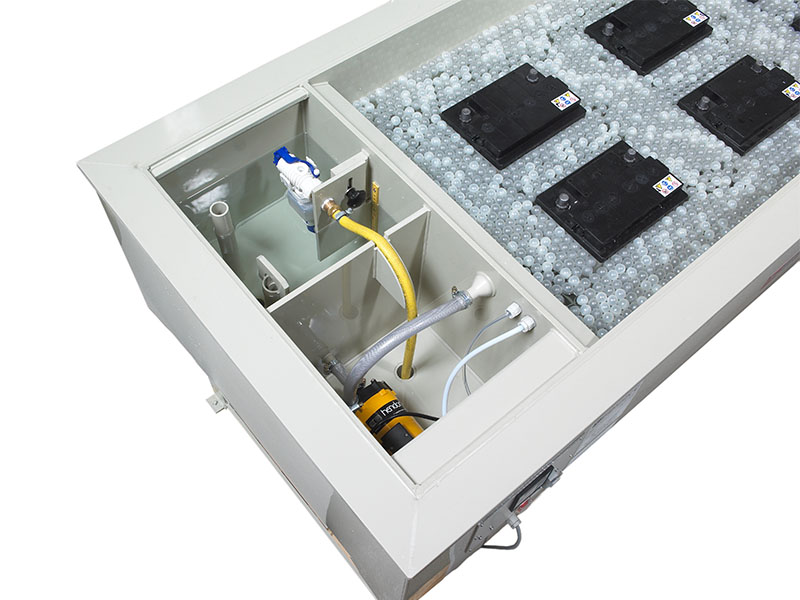

Water bath

The perfect temperature compensation for batteries
